Pneumatic V-shaped adjustable control valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
Pneumatic V-shaped adjustable control valves
features
ZYHV pneumatic v-type regulating control valves (hereinafter referred to as regulating control valve), is a kind of adjusting valves, and the execution unit of pneumatic unit combination instrument, generally combines with electric valves locator or pneumatic valves locator for usage. V-type regulating control valve spool opened a v-shaped incisions, and the seat relative rotation produce shearing force, prevent jammed. Especially suitable for mud and contain fiber medium, and contain tiny particles and contain suspended medium regulation. Shanghai Yihuan flow control equipment Co.,ltd produced pneumatic v-type regulating valve is widely used in petroleum, chemical, pharmaceutical, metallurgical, textile, paper, sewage treatment and production department gas, steam, liquid medium in pipelines flow control, in order to achieve production process control requirements. Pneumatic v-type regulating valves nominal pressure rating has PN1.6, 4.0, 6.4 MPa, nominal diameter scope from 25mm to 300mm, allowed leakage has Class IV and Class VI.
structure:

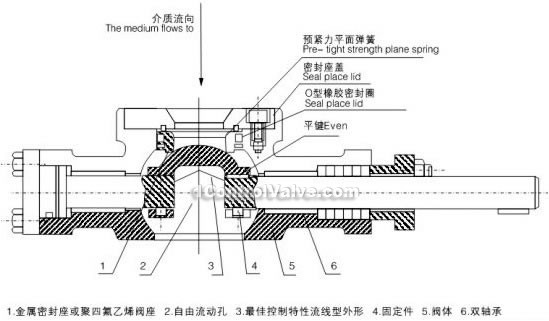

Pneumatic piston fast cutting off valve constructral diagram(pic1)
Pneumatic piston fast cutting off valve constructral diagram(pic2)
Pneumatic piston fast cutting off valve constructral diagram(pic3)
technical parameters and performance indicators
body, bonnet：WCB、HT200、ZG230-450、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti
stem：OCr17Ni12Mo2、OCr17Ni14Cu4Nb
disc：ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti
stem, bearing：OCr17Ni12Mo2
core: enhanced PTFE,bead welded stellite
pressing ring：OCr17Ni12Mo2
seat(sealing ring)： PTFE, graphite
seat supporter：OCr17Ni12Mo2
gasket ring: fluorine rubber "O" ring
performance technical parameters
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 300 |
| rated flow coefficient Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 554 | 798 | 1418 | 3900 |
| PN(Map) | 1.6、 4.0、 6.4 | ||||||||||
| flow characteristic | equal percentage | ||||||||||
| disn corner | 0゜±4至90゜ ±4（adjustable） | ||||||||||
| operating pressure(Map) | double acting 0.2～1.0, single acting 0.3-1.0 | ||||||||||
| applicable temperature（℃） | soft sealing：-10～180, hard sealing：-60～450 | ||||||||||
| allowed pressure differential (Map) | is the nominal pressure value | 4.0 | 2.0 | ||||||||
| allowed leakage class | soft sealing Ⅵ, hard sealing Ⅳ | ||||||||||
| acting time (S) | 0.5～7 | ||||||||||
| actuator output torque（Nm） | 5.9～5169 | ||||||||||
control valve form
| body form | ”O” control valve | |
| control valve | wafer | |
| flange | ||
| sealing form | soft sealing | |
| hard sealing | ||
| acting form | signle acting | |
| double acting | ||
external dimensions
| PN 1.6MPa | |||||||||||||
| DN(mm) | dimensions（mm） | ||||||||||||
| wafer connection | flange connection | Dc | H1 | F | |||||||||
| L | L1 | D | L | L1 | D | D1 | D2 | b | Z-фd | ||||
| 25 | 50 | 25 | 64 | - | - | - | - | - | - | - | 38 | 57 | 400 |
| 40 | 60 | 25 | 82 | - | - | - | - | - | - | - | 49 | 63 | 400 |
| 50 | 75 | 32 | 100 | 124 | 62 | 160 | 125 | 100 | 16 | 4-ф18 | 60 | 92 | 400 |
| 65 | 85 | 38 | 120 | 145 | 72.5 | 180 | 145 | 120 | 18 | 4-ф18 | 75 | 100 | 400 |
| 80 | 100 | 45 | 131 | 165 | 82.5 | 195 | 160 | 135 | 20 | 8-ф18 | 89 | 108 | 400 |
| 100 | 115 | 50 | 158 | 194 | 97 | 215 | 180 | 155 | 20 | 8-ф18 | 113 | 117 | 400 |
| 125 | 135 | 155 | 180 | 210 | 105 | 245 | 210 | 185 | 22 | 8-ф18 | 140 | 140 | 455 |
| 150 | 160 | 65 | 216 | 222 | 114.5 | 280 | 240 | 210 | 24 | 8-ф23 | 164 | 177 | 455 |
| 200 | 200 | 80 | 268 | 243 | 121.5 | 335 | 295 | 265 | 26 | 12-ф23 | 205 | 200 | 700 |
| 250 | 240 | 92 | 326 | 297 | 148.5 | 405 | 355 | 320 | 30 | 12-ф25 | 259 | 252 | 700 |
