Electronic type electric staight signle, double seat control valve

manufacturer: Shanghai Fengqi Industry Development Co., Ltd.
Eml: sales@fengqi.sh.cn

Tel: 86 (21) 3652 8716
Mob: (86) 138 1635 6498

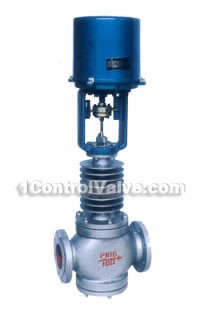

product drawing

Electronic type electric staight signle, double seat regulative valves
Electronic type electric staight signle, double seat control valves

features

ZYHP, ZYHN type electronic type electric straight single-seat regulator and electronic straight two-seat regulator use double oriented structure, equipped with 3601L series electronic straight travel electric actuators. With compact structure, light weight, quick action, high accuracy of flow characteristics, convenient in assembling and disassembling etc. It is widely used for precise control gases, liquids, steam and other medium parameters, such as pressure, temperature, flow rate and fluid in a given value. Especially suitable for bigger pressure difference, allowing leakage is also larger and not very clean medium. Electronic type electric straight signle, double seat regulator has standard type, bellows sealing type, jacket insulation and other types. Shanghai Yihuan flow control equipment Co., LTD. produced electronic type straight single-seat regulator and electronic straight double seat nominal pressure are PN16, 40, 64, nominal diameter scope is DN25-400. The applicable temperature range is -120 degree – 450 degree range of different grades. Leakage standard is class Ⅱ or class IV. Flow characteristic is linear or equal percentage. Various specifications are available. This product performance index implements GB/T4213-92

structure

Electronic type electric staight signle, double seat regulative valve constructral diagram(pic1)
Electronic type electric staight signle, double seat control valve constructral diagram(pic1)
Electronic type electric staight signle, double seat regulative valve constructral diagram(pic2)
Electronic type electric staight signle, double seat control valve constructral diagram(pic2)
Electronic type electric staight signle, double seat regulative valve constructral diagram(pic3)
Electronic type electric staight signle, double seat control valve constructral diagram(pic3)
Electronic type electric staight signle, double seat regulative valve constructral diagram(pic4)
Electronic type electric staight signle, double seat control valve constructral diagram(pic4)
Electronic type electric staight signle, double seat regulative valve constructral diagram(pic5)
Electronic type electric staight signle, double seat control valve constructral diagram(pic5)
Electronic type electric staight signle, double seat regulative valve constructral diagram(pic6)
Electronic type electric staight signle, double seat control valve constructral diagram(pic6)
Electronic type electric staight signle, double seat regulative valve(pic7)
Electronic type electric staight signle, double seat control valve(pic7)

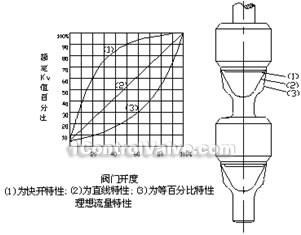

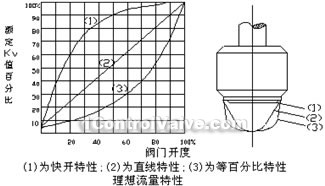

diagram

Electronic type electric staight signle, double seat regulative valve(pic8)
Electronic type electric staight signle, double seat control valve(pic8)

Technical parameters and performance indicators

body, bonnet:WCB、HT200、ZG230-450、ZG1Cr18Ni9Ti
core:1Cr18Ni9Ti, bead welded stellite
packing: PTFE, flexible graphite, ss bellows
gasket: rubber asbestos plate, 1Cr18Ni9Ti, graphite spiral wound gasket
stem, pushrod:2Cr13、1Cr18Ni9Ti
sleeve :2Cr13
nominal pressurePN(Mpa) : 1.6、 4.0、 6.4
The intrinsic flow feature: straight, equal percentage
intrinsic adjustable ratio R: 50:1
signal scope(DC):0~10mA、 4~20mA、1~5V、 0~10V
power voltage:220V、 50HZ
acting mode: electric-open, electric-close
When signal failed: full open, full close, keep posistion
allowed leakage (L/min) 10-3×rated flow

technical parameters

nominal diameter DN(mm) 25 32 40 50 65 80 100 125 150 200 250 300 400
rated flow ratio Kv linear 12.1 19.4 30.3 48.3 75.9 121 193.6 302.5 484 759 1210 1936 2920
equal percentage 11 17.6 27.5 44 69.3 110 176 275 440 693 1100 1760 2700
rated stroke  L(mm) 16 25 40 60 100
PN(Mpa) 1.6、 4.0、 6.4
intrinsic flow characteristic linear, equal percentage
intrinsic adjustable ratio R 50:1
signal scope (DC) 0~10mA、 4~20mA、1~5V、 0~10V
power voltage 220V、 50HZ
acting mode electric-open, electric-close
signal failed state full open, full close, keep position
  allowing leakage (L/min) 10-3×rated flow
working temperaturet
(℃)
normal temperature -20~200、 -40~250、 -60~250
radiating -40~450、 -60~450
high temperature 450~650
low temperature -60~100、 -100~-200、 -200~-250

external dimensions (unit:mm)

DN 20 25 32 40 50 65 80 100 125 150 200 250 300
flange length
(L)
PN16 180 185 200 220 250 275 305 350 410 450 550 670 770
PN40 185 190 210 230 255 285 310 355 425 460 560 690 795
PN64 190 200 220 240 265 295 320 370 400 475 570 752 819
standarad bonnet
H1
signle seat 625 660 672 817 847 1127 1143 1151 1279 1304 1369 1682 1823
double seat   670 676 837 847 1147 1177 1201 1329 1354 1429 1802 1923
mesotherm bonnet H1 signle seat 825 860 892 1017 1047 1377 1393 1401 1599 1624 1689 2032 2171
double seat   870 876 1037 1047 1397 1427 1451 1649 1674 1749 2152 2273
H2 signle seat 91 112 118 129 144 173 191 195 243 251 290 380 436
double seat   117 120 139 144 188 208 220 268 278 320 441 465
H3 87 90
ФD 225 257 310
flange standard GB:1.6、2.5、4.0、6.4Mpa   ANSI:150、300、600Lb   JIS:10K、20K、30K
